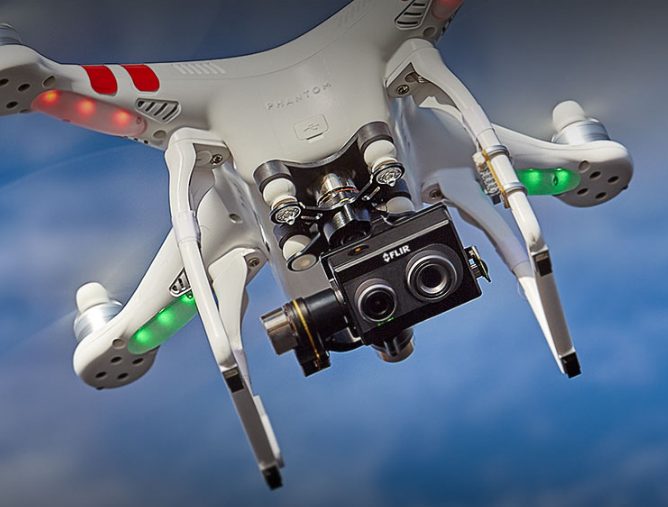

FLIR Duo Thermal and Visible Drone Cameras

FLIR Duo

The FLIR Duo thermal to new heights with the FLIR Duo: a compact, lightweight, dual-sensor thermal and visible light imager designed for drones. The same size and shape as the most popular action cameras.

The FLIR Duo is the drone industry’s first multi-sensor camera that features FLIR’s Lepton thermal microcamera core, a high-definition (HD) 1080p visible camera, and FLIR’s patented MSX technology. The FLIR Duo offers versatile onboard recording to a micro SD card and real-time remote control of camera functions and can be mounted to any airframe capable of holding the most popular action cameras. Operators can switch between the FLIR Duo’s thermal and visible cameras in-flight or view both in a picture-in-picture mode. Priced at $999.99, the FLIR Duo is accessible to drone hobbyists and professionals alike.

Its analogue and digital HDMI live video outputs let you view thermal or visible imagery alone, or combined in MSX or Picture-in-Picture format. Duo R adds calibrated radiometric temperature measurements on top of all this!

Remotely control up to two camera functions with PWM inputs and configure your camera’s recording and control settings over Bluetooth with the intuitive FLIR app for easy setup in any application.

The FLIR Duo R, priced at $1,299.99, adds accurate temperature measurement capabilities for commercial applications including agricultural, construction, civil engineering, building inspection, and public safety use cases.

Both the FLIR Duo and Duo-R are available to order today at established FLIR partners and at www.flir.com/duo.

FLIR DUO SPECIFICATIONS

Overview FLIR Duo
Thermal Imager Uncooled VOx Microbolometer
Sensor Resolution 160 x 120
Lens Options 57° x 44°
Spectral Band 7.5 – 13.5 µm
Thermal Frame Rates 7.5 Hz (NTSC); 8.3 Hz (PAL)
Thermal Measurement Accuracy* +/-5°C or 5% of reading
Visible Camera Resolution 1920 × 1080
Visible Camera FOV 90°
Physical Attributes
Size 41 × 59 × 29.6 mm
Weight 84 grams
