Thunderwasp

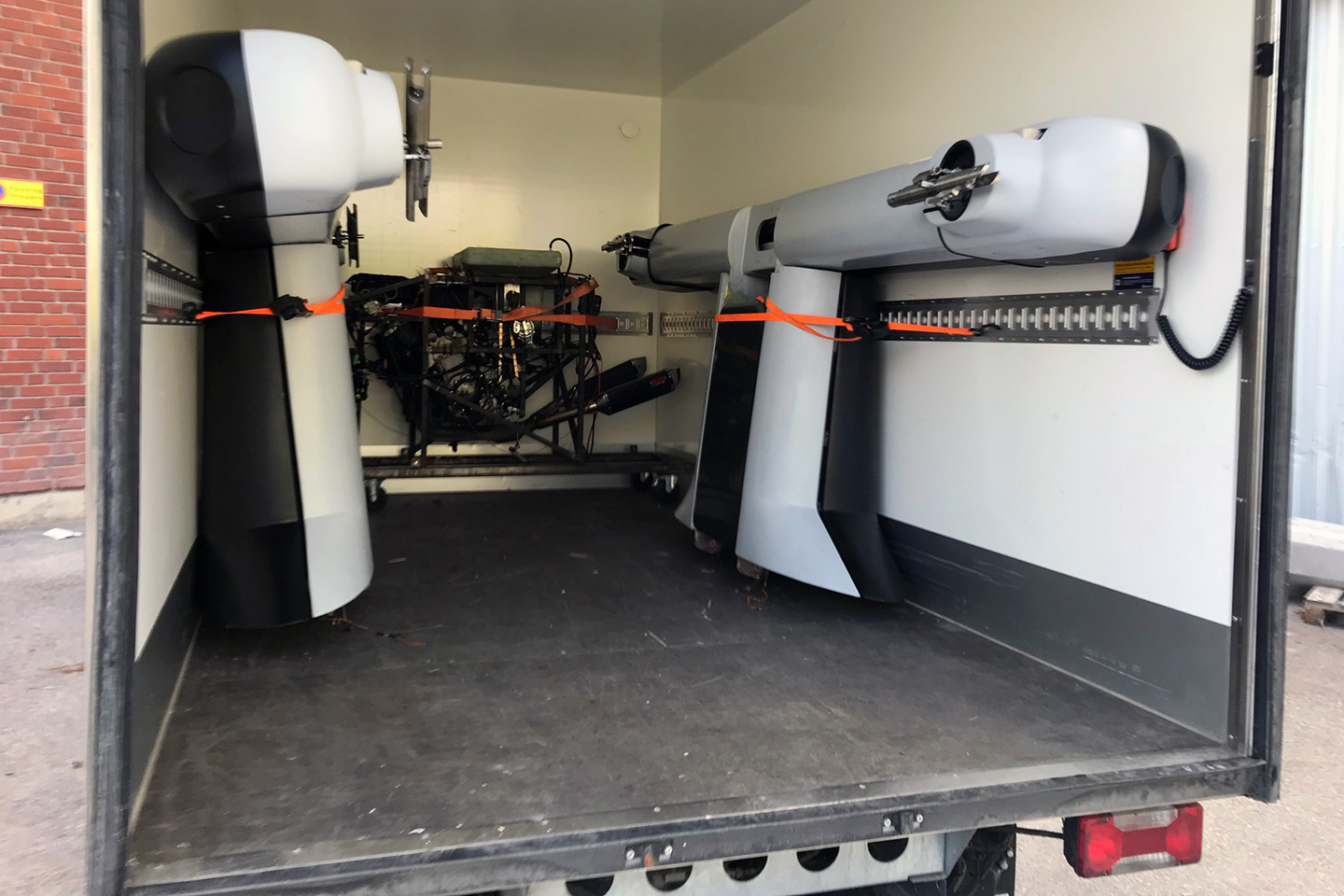

The Thunderwasp air drone is a scalable system starting at only 200 kg for easy handling, while offering top-range payload capacity. The Thunderwasp can run on 95 to 98 octane standard petrol or Jet A1 fuel.

The Thunderwasp can integrate and carry almost any sensor with a weight of up to 1000 kg, even higher with customisation, while unique patented driveline creates minimal vibration for stable sensor and video operation.


Thunderwasp
Locust
TypeQuad RotorTandem Rotor
Length incl. rotor blades6.5 m
Width incl. rotor blades6.5 m
Diameter rotor blades3.0 m2.9 m
Height1.6 m
Maximum takeoff weight (MTOW)870 kg380 kg (Simonini 120 hp)
Empty weight230 kg147 kg
Fuel capacity400 kg
Engine alternativesPiston Engine
Heavy Fuel Engine
Turbo Shaft
Simonini Victor Super 2 (Automotive Gasoline)
PBS TJ100 Turboshaft (Heavy Fuel)
DC 12/24V (Electric)
Power Output151 kW – 180 kW
Max speed95 knots (IAS)
Loiter speed55 kn (IAS)
Cruising speed112 km/h
Endurance+5 h5 h (140 kg Payload)
Endurance 300 kg payload+3 h
Service ceiling4000 m ASL ISA Conditions15000 ft (ISA Conditions)
Service ceiling 400 kg fuel and 300 kg payload3000 m ASL ISA Conditions
