LEUVEN, Belgium, 8 July 2019 – Virtual Surveyor has enhanced the LiDAR elevation data handling capabilities in Version 6.4 of its drone surveying and mapping software. A new function enables Virtual Surveyor users to select specific feature classes from classified LiDAR point clouds before converting the point cloud to a surface terrain.

“The latest upgrades in Virtual Surveyor 6.4 are designed to meet the needs of UAV users who are increasingly equipping their drones with LiDAR systems,” said Tom Op ‘t Eyndt, CEO of Virtual Surveyor nv in Belgium.

Doubling its user base in one year, Virtual Surveyor is popular among surveyors because it bridges the gap between UAV photogrammetric processing applications and engineering design packages. The software generates an interactive onscreen environment with UAV orthophotos/DSMs and/or LiDAR point clouds where the surveyor selects survey points and break lines to define the topography, creating highly accurate products up to five times faster than otherwise possible.

In Version 6.4, users can import a LiDAR point cloud that has been classified by elevation in a third-party software into feature classes such as ground surface, low vegetation, building structure, and tree canopy. Virtual Surveyor allows its users to select one or more classes for visualization and further processing into topographic products. The new release interpolates points as needed to generate a smooth terrain surface.

“This new feature was requested by Virtual Surveyor clients who are working in heavily forested areas and rely on LiDAR to penetrate the canopy and capture data of the bare Earth below,” said Op ‘t Eyndt. “They can now extract meaningful points and breaklines directly from the bare-earth level instead of producing a ground surface on the DSM using the low-pass points.”

A second new function added in Virtual Surveyor 6.4 is the ability to integrate two types of data to create a single cohesive scene. Requested by operators of gravel pits and coastal zone monitoring projects, this feature will most often be used to merge bathymetric survey points acquired underwater with traditional photogrammetric imagery captured by drones.

Version 6.4 also gives its users enhanced mosaicking functionality. When numerous LiDAR data files collected on separate UAV flights are loaded into Virtual Surveyor, the software stitches the data together and eliminates seam lines, creating a single merged terrain.

“As prices continue to make advanced LiDAR systems attractive to UAV operators, we will add new point cloud handling features to Virtual Surveyor, such as the Hill Shade Lens introduced earlier this year,” said Op ‘t Eyndt.

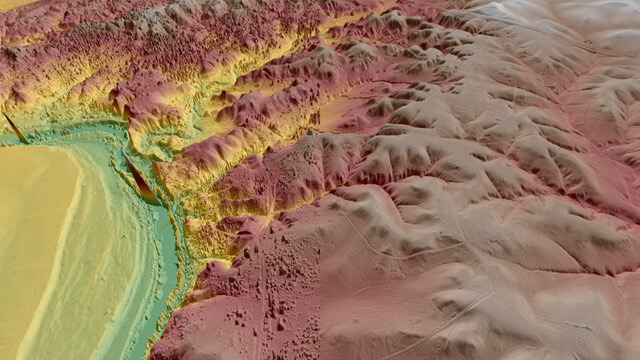

Designed mainly for application on a Digital Surface Model created from LiDAR data without an underlying ortho, the Hill Shade lens simulates sun illumination casting shadows on the scene. The result is enhanced 3D perception of hills, valleys and other relief. This lens was introduced with many others in Version 6.3 of Virtual Surveyor. Current subscribers to Virtual Surveyor will see their software being updated to Version 6.4 automatically.

To start a free 14-day trial of Virtual Surveyor, visit

About Virtual Surveyor

Virtual Surveyor software enables professional surveyors to generate accurate topographic end products from drone imagery five times faster than traditional fieldwork.

Now used in 62 countries, Virtual Surveyor allows surveyors to create light-weight CAD models from drone data in very short timeframes. In a typical application, the suite takes the orthophotos and digital surface models (DSM) extracted from UAV imagery with photogrammetric software like Pix4D, Photoscan or DJI Terra and generates an interactive virtual environment onscreen where surveyors can select the survey points and breaklines that define topography. Standard topographic outputs from the Virtual Surveyor software are Surfaces or TINs (Triangular Irregular Network), Contours, and Line Surveys.

These survey-grade deliverables are ready for direct input into computer-aided design (CAD) software packages such as AutoCAD, Civil3D, Magnet Office, Vulcan and BricsCAD. As such, Virtual Surveyor bridges the gap between UAV photogrammetric processing software and engineering design packages.

More information:Global: Tom Op ‘t Eyndt+1 (917) 789 1555
