Desert Rotor Mantis 12PCX HOTAS GCS

drone identification kit

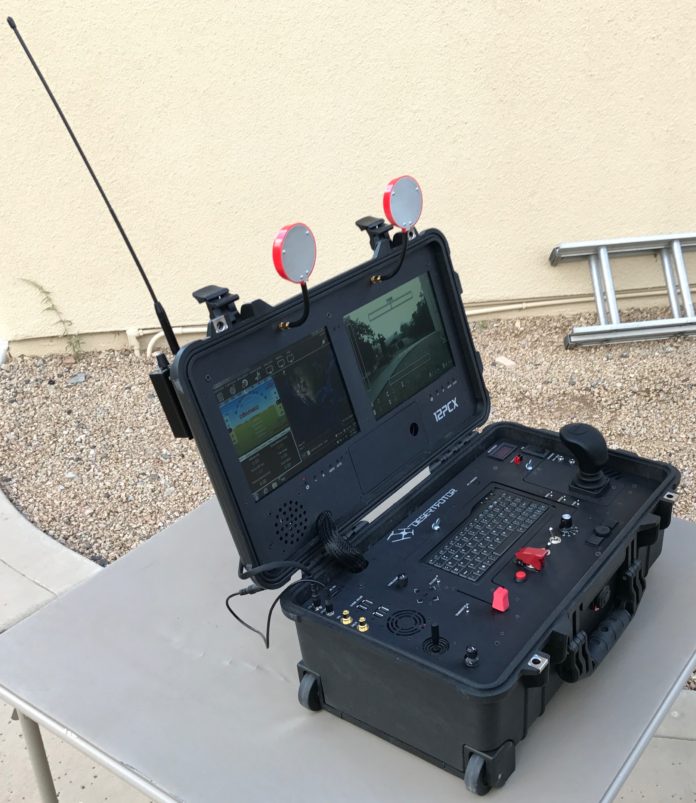

A 12 channel ground station integrated into the Pelican© 1510 field case with retractable luggage handle. Internal computer with panel mounted keyboard and mouse. Dual 10.4″ sunlight viewable LCD screens. Retractable 3-axis flight control stick, 2-axis camera gimbal stick, precision throttle slide, and custom on-screen display makes for a revolutionary flight control system.

PNP (Plug and Play) Solution – Reduce cables, connectors, scattered components, and compatibility headaches. All-in-one solution for drone piloting via FPV (First Person View), so you can set up and fly faster.

Portable – The Pelican© 1510 Case is FAA overhead compartment size approved.

Flexible – Bind to most current and future fixed wing or rotary unmanned vehicles.

Flight Control – Fly naturally and smoothly with a reduced learning curve using our HOTAS (Hands on Throttle and Stick) configuration with 3-axis stick and throttle slider.

Computer – Run your telemetry and mission planning software of choice on the internal computer with built-in keyboard and mouse.

USB – 4 panel mounted powered USB jacks for charging and connectivity with the internal computer.

Compatibility

Control – Desert Rotor Ground Stations are compatible with DragonLink, ezUHF, Spektrum, and Futaba. Just plug the transmitter module into the Ground Station and experience the future of UAV flight.

Video – Plug and play your desired video receiver under the access plate and connect antennas to the panel mounted jacks. Optional 5.8GHz Video Receiver and IftronTech© 5.8GHz Patch Vitenna© circularly polarised antennas.

Compatibility Dragon Link/ezUHF/Spektrum/Futaba
Channels Up to 12 Channels (based on transmitter module)
Screens Dual 10.4” 1200NIT LED Sunlight Viewable
Video Receiver 5.8GHz Diversity Video Receiver (optional)
Antennas 2x IftronTech Vitenna© 5.8GHz Patch Antenna (optional)
On Screen Display Desert Rotor OSD Paged Overlay
Computer Windows. 64GB SSD. 4GB RAM. Celeron, Core i3, and Core i5 available
Data Connectivity Dual Band Wifi Standard, 4G LTE (optional)
Power Swappable Lithium Ion 10.4Ah with Simple DC Charger
Gimbal Control 2-Axis Joystick with Auxillary Knob
Flight Control APEM™ Hall Effect 3-Axis / 2-Button Joystick, Dedicated Trim Controls, and Dual-Rate Switch
Throttle Precision Slider
Dimensions 22” x 13.81” x 9” (55.9 x 35.1 x 22.9 cm) – L x W x D – Pelican 1510

Read the specs PDF for more info
