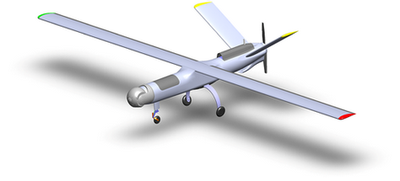

UAS Technologies and Bluebird are joining forces to complete work on the UAS 20 the mini Watch Keeper lookalike has a 4m wingspan and projected 24 hour endurance.
■ Performance
■ Safety
■ Reliability
■ Safety
■ Reliability
BUILDING BLOCS:
■ Optimal Low Reynolds Aerodynamics
■ Optimal Low Reynolds Aerodynamics
■ Highly Efficient Structure
■ Smart System Redundancy
DIMENSIONS:
■ Wing Span: 4.1 m
■ Length: 1.6 m
■ Wing Span: 4.1 m
■ Length: 1.6 m
WEIGHTS:
■ Empty: 12 kg
■ Fuel + Payload : 12 kg
■ Maximum: 24 kg
■ Empty: 12 kg
■ Fuel + Payload : 12 kg
■ Maximum: 24 kg
PERFORMANCE:
■ Cruise Speed: 42 knots
■ Max Speed: 72 knots
■ Ceiling: 16 kft
■ Operational Range: up to 100 km
■ Endurance: 24 hours
■ Cruise Speed: 42 knots
■ Max Speed: 72 knots
■ Ceiling: 16 kft
■ Operational Range: up to 100 km
■ Endurance: 24 hours
SYSTEM FEATURES:
■ Propulsion: 3W-28i 2.5 hp
■ Fuel: Gasoline, Heavy fuel
■ Navigation: GPS / Inertial
■ T/O and Landing: Landing Gears
■ Launch & Recovery: Pneumatic Catapult and Recovery Net
■ Propulsion: 3W-28i 2.5 hp
■ Fuel: Gasoline, Heavy fuel
■ Navigation: GPS / Inertial
■ T/O and Landing: Landing Gears
■ Launch & Recovery: Pneumatic Catapult and Recovery Net
